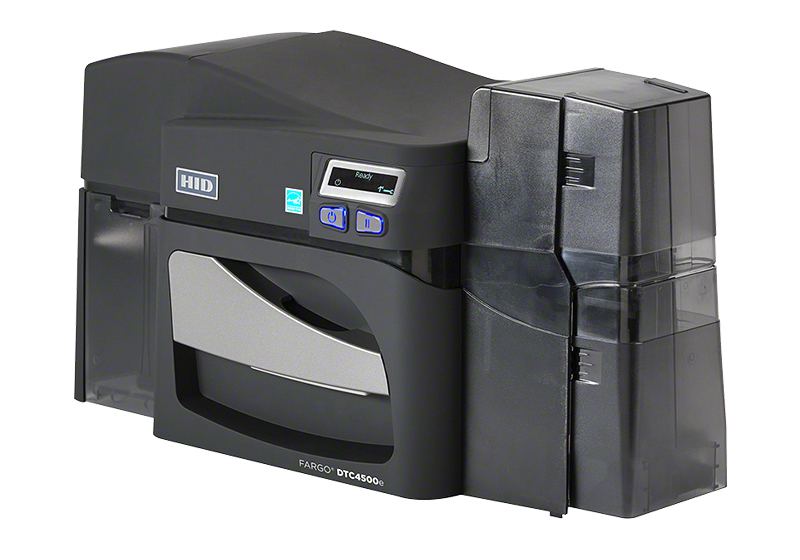

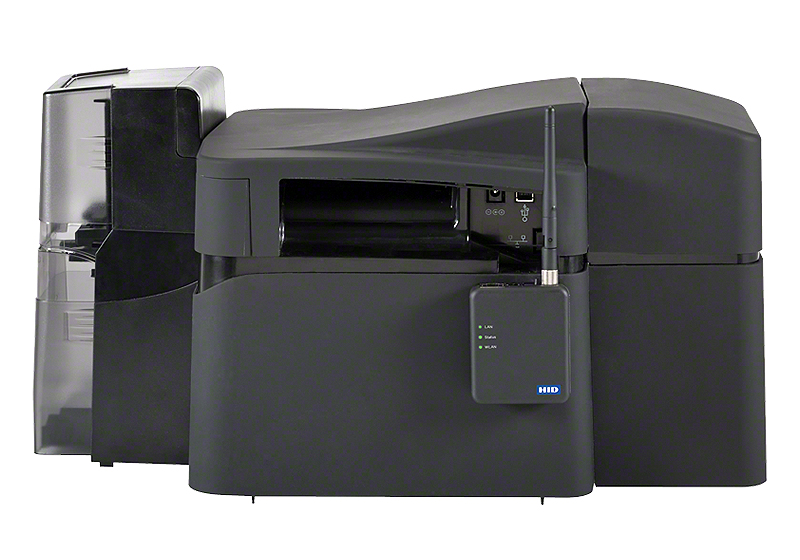

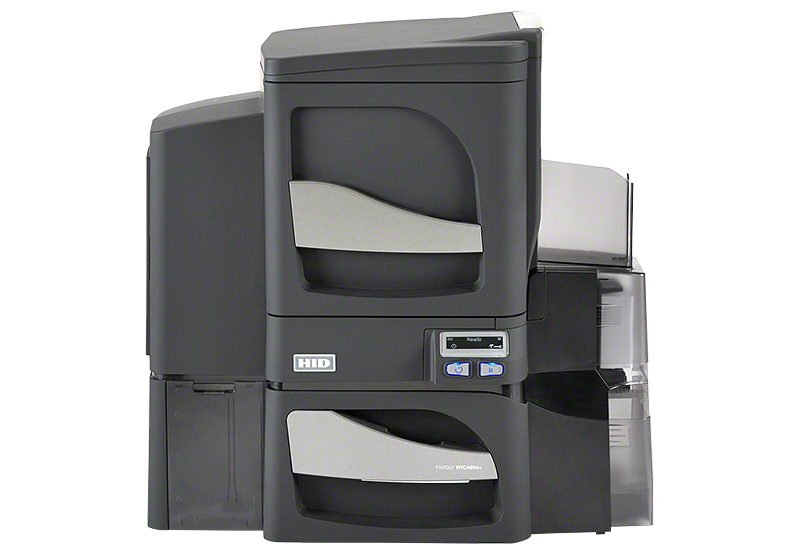

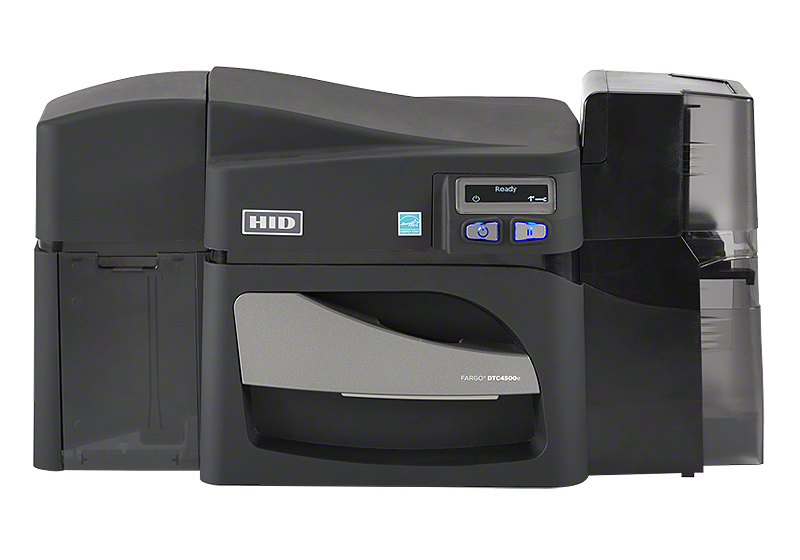

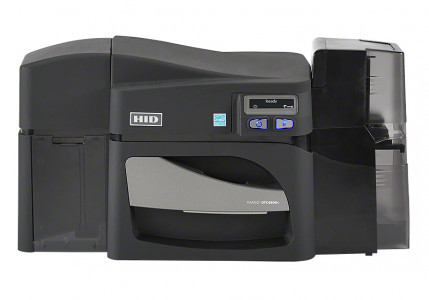

HID Fargo DTC4500e



HID Fargo DTC4500e

Advanced Level
Thermal Transfer Card Printer

Order Form

GENERAL PRINTING FEATURES

  • Thermal transfer printing technology with the direct-to-card sublimation method.
  • Options for single-sided and double-sided thermal printing.
  • Single-sided and double-sided laminating module.
  • 300 dpi print head.
  • Prints on cards sized 86mm x 54mm in accordance with ISO CR-80 standards.
  • Full-color printing: 16 seconds single-sided (YMCKO).
  • Monochrome printing: 6 seconds single-sided (K).

PHYSICAL, SOFTWARE, AND OPTIONAL FEATURES

  • Compatible with all Windows operating systems.

  • USB 2.0 and Ethernet connectivity.
  • Smart indicator panel.
  • 32MB memory.
  • Width: 460mm / Height: 249mm / Depth: 234mm / Weight: 4.1 kg (Single-sided DTC4500e dimensions may vary depending on options).
  • Standard dual-input 200-card input hopper and 100-card output hopper.
  • 100-card reject hopper.
  • Optional factory-installed magnetic stripe encoding for Hico/Loco.
  • Optional factory-installed contact and contactless smart card encoding.
  • Optional factory-installed iCLASS HID card encoding.
  • Optional field-updatable single and double-sided laminating module.

45200 – YMCKO 500
45214 – YMCKO ½ 500
45210 – YMCKO-K 500
45202 – K 3000
82600 – 0.6mil Laminating 250
82601 &n
