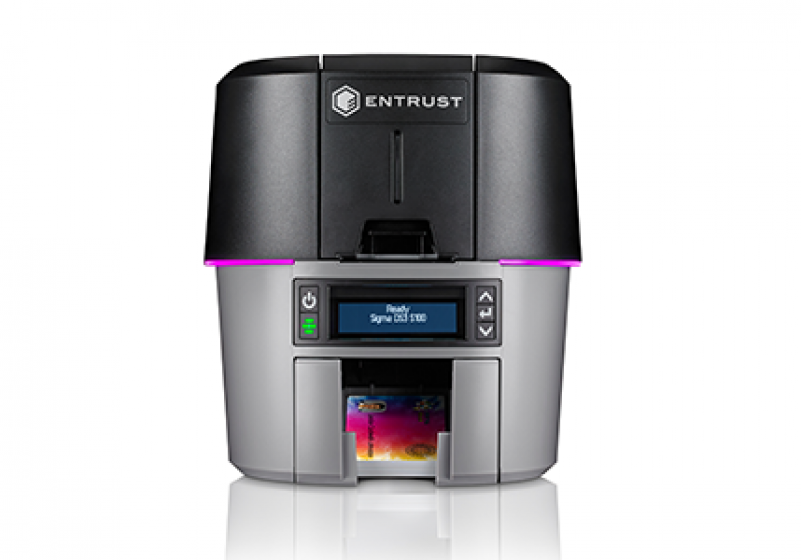

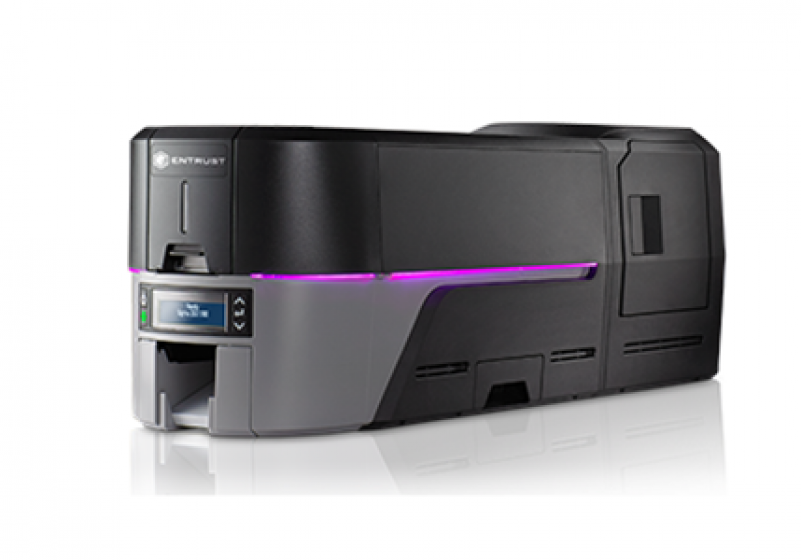

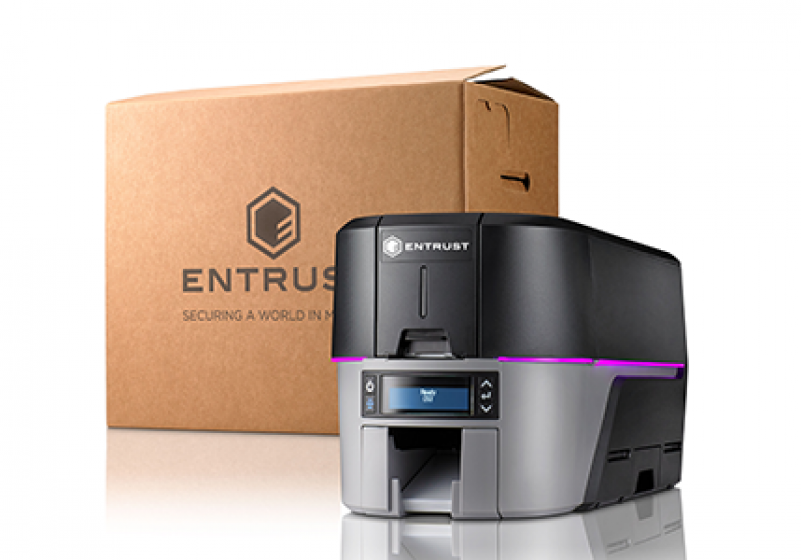

Entrust Sigma DS3
Entrust Sigma DS3 - With its lamination and stamping modules, it offers unparalleled security, flexibility, and scalability for ID card printing, providing protection against counterfeiting with added vibrant print and security features on cards.
GENERAL PRINTING FEATURES
• Direct-to-Card Dye Sublimation with Thermal Transfer Printing Technology
• Single-Sided and Dual-Sided Thermal Printing Options
• Single-Sided or Dual-Sided Lamination + Hot Stamping Module
• 300 DPI Print Head (300x600, 300x1200)
• Printing on Cards with Dimensions of 86mm x 54mm, Standardized to ISO CR-80
• Full-Color Printing: Up to 250 Cards per Hour, Single-Sided (YMCKT)
PHYSICAL, SOFTWARE, AND FUNCTIONAL FEATURES
• Compatible with All Current Windows Operating Systems
• USB and Ethernet Connectivity / Optional Wi-Fi Connectivity
• LCD Control Panel
• 128 MB Memory
• Width: 229mm / Height: 226mm / Depth: 442mm / Weight: 5.49kg (DS3 Single-Sided Lamination Dimensions, May Vary Depending on Options)
• Standard 125-Card Input Hopper, 25-Card Output Hopper
• Exception Slot for Manual Feed: 1 Card Input
• Optional Field-Upgradeable Magnetic Stripe Hico/Loco Encoding
• Optional Field-Upgradeable Contact and Contactless Smart Card Encoding
• Optional Field-Upgradeable iClass HID Read and Write Encoding
• Optional Field-Upgradeable Output Hopper to 125 Cards

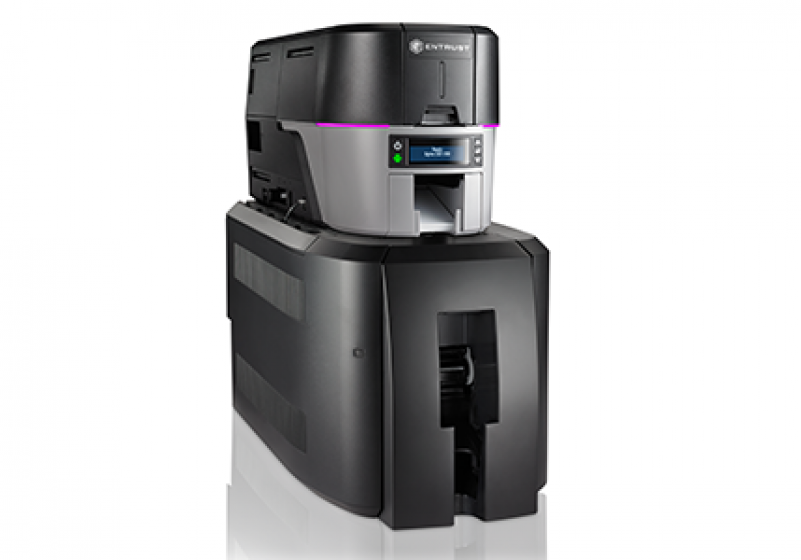

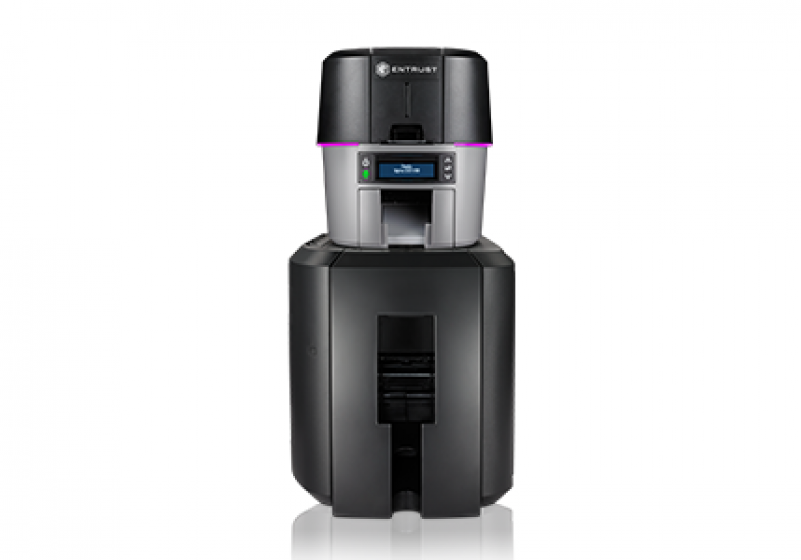

• Optional Field-Upgradeable Input Hopper with 6 Compartments, Each for 125 Cards

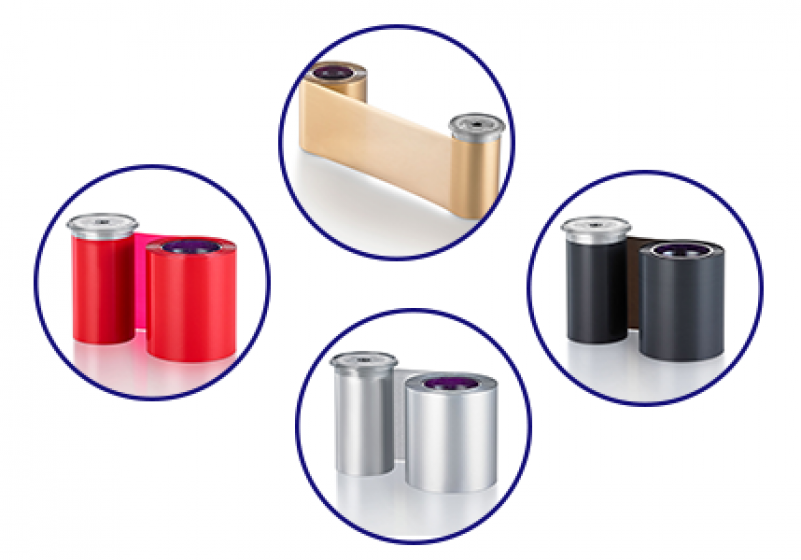

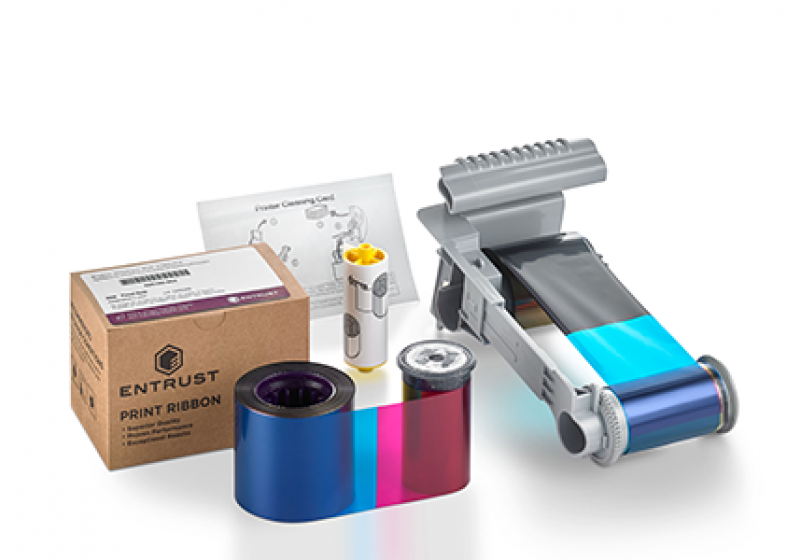

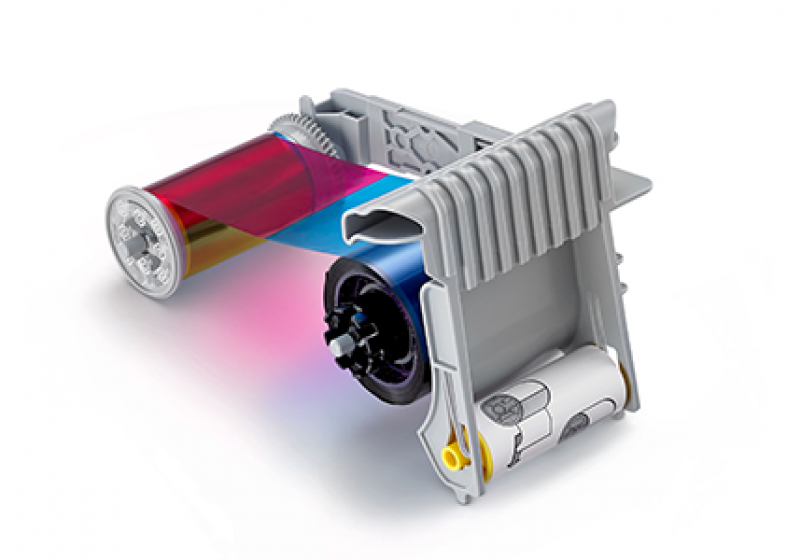

525100-004 - S100 - YMCKT 500 Print Full Color Ribbon
525100-002 - S100 - YMCKT ½ 650 Print Short Strip Ribbon
525100-005 - S100 - YMCKT-KT 350 Print Full Color Ribbon
525100-014 - KT 1000 Print Black Ribbon
525900-001 - S100 - K 1000 Print Black Standard Monoch
